Overview
-> Mid-detection range 30m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.25°
-> It is possible to detect size, position and the moving direction of objects.
Outdoor model
Outdoor model (Outdoor LiDAR for intelligent robots) with Small Size
The smallest and lightest of its kind.
The lightness at only 130g make it easy to install on even smaller robots or Unmanned Aerial Vehicles.
-> The smallest and the lightest of its kind, 130g
-> Mid-detection range 30m, Wide detection angle 270, Fast response 25msec, High angular resolution 0.25°
-> It is possible to detect size, position and the moving direction of objects

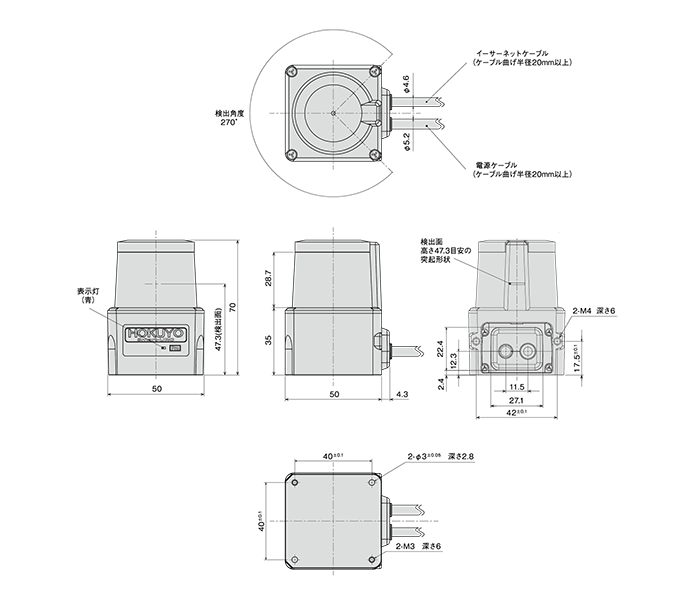

Trọng lượng | 130 g |
---|---|
Kích thước | 0.5 × 0.5 × 0.7 cm |
Product name | Laser range finder |
Model | UST-30LX |
Supply voltage | 12VDC/24VDC (operation range 10 to 30V ripple within 10%) |
Supply current | 150mA or less (during start up 450mA is necessary) |
Light source | Semiconductor laser, λ=905nm, safety class of the laser = 1 |
Detection range | 0.05m to 30m (white Kent sheet) 0.05m to 12m (diffuse reflectance 10% ) Maximum detection distance : 180m(@10m), 350mm(@20m), 520mm(@30m) |
Accuracy | +/-40mm *1 |
Repeated accuracy | σ<20mm *1 |
Scan angle | 270° |
Scan speed | 25ms (Motor speed 2400rpm) |
Angular resolution | 0.25° |
Start up time | Within 10 sec (start up time differs if malfunction is detected during start up) |
Output | Synchronous Output, photo coupler open collector output 30VDC 50mA MAX |
Interface | Ethernet 100BASE-TX |
LED display | Power supply LED display(Blue) : Blinks during start up and malfunction state |
surrounding intensity | Less than 100,000lx Note : Avoid direct sunlight or other illumination sources as it may cause sensor malfunction |
Ambient temperature and humidity | -30°C to +50°C, below 85%RH (without dew, frost) |
Storage temperature and humidity | -30°C to+70°C, below 85%RH (without dew,frost) |
Vibration resistance | 10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction 55 to 200Hz 98m / s2(10G) sweep of 2min for 1hr in each X,Y and Z direction |
Shock resistance | 196m/s2 (20G) X,Y and Z direction 10 times |
EMC standards | (EMI) EN61326-1:2013 EN55011:2009 + A1:2010 (EMS) EN61326-1:2013 EN61000-4-2:2009 EN61000-4-3:2006 + A1:2008 + A2:2010 EN61000-4-4:2012 EN61000-4-6:2009 EN61000-4-8:2010 |
RoHS | (EU)2015/863 |
Protective structure | IP67 |
Weight | 130g(Excluding cable) |
Material | Front case: Polycarbonate, Rear case: Aluminum |
Dimensions (W×D×H) | 50×50×70mm(sensor only) |
*1. Under the factory standard testing conditions using white Kent sheet.
Hokuyo chuyên sản xuất các thiết bị quang học như máy đo khoảng cách laser, thiết bị truyền dữ liệu quang học, cảm biến ảnh, bộ đếm tự động và cửa tự động mang lại hiệu suất và độ tin cậy cao.
