UAM-05LP-T301/T301C

Name: UAM-05LP-T301/T301C - Công Ty TNHH U.N.I Thái Dương
Brand: Hokuyo
SKU: UAM-05LP-T301/T301C
Availability: InStock

Nhận báo giá

World`s smallest
Safety Laser Scanner

A compact design for installation on AGVs,
AGCs as well as in vertical guarding applications.

-> Protection zone : 5m 270°
-> Data Output via Ethernet
-> Master-Slave Function
-> Dual Protection
-> Encoder Input

Conformity Standards
IEC61496-1/3 : Type3
IEC61508 : SIL2
ISO13849-1 : PL d Category3

Quan tâm

Overview

-> Protection zone : 5m 270°
-> Data Output via Ethernet
-> Master-Slave Function
-> Dual Protection
-> Encoder Input

Protection over a Wide Range

Up to 5 meters of protection zone and 20 meters of warning zone configuration to suit various application requirement.

Master-Slave Function

Maximum 4 units of UAM can be interconnected for Master-Slave operation when multiple units are required to guard the hazardous area. The system can be controlled by connecting the input and output signals to Master unit only. Important Note: It is not possible to control the actuators via master-slave bus communication.

Dual Protection Mode

UAM can simultaneously protect two hazardous areas. Separate OSSD signals are triggered for the respective protection zones making it possible to guard two machines with a single UAM.

Thông tin bổ sung

Trọng lượng	800 g
Kích thước	80 × 80 × 95 cm

Applications

Examples

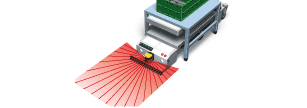

Collision Prevention

32 area patterns to accommodate the AGV travel path for collision prevention.

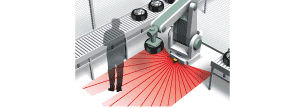

Area Protection

Detects humans or object entering the hazardous area.

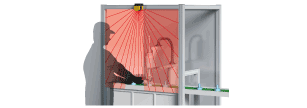

Access protection

Detects access to critical zone. Reference boundary monitoring feature improves the safety by detecting the gaps around the protection zone and sensor’s misalignment.

Model No.

* Sensor unit

Model Number	Code Number	Cable type	Notes
UAM-05LP-T301	UUAM005	Flying cable 3m
UAM-05LP-T301C	UUAM006	Cable 0.3m with waterproof connector	The connector cable is required. Please see the Extension cable line-up in the option list.

* Extension cable for flying cable type UAM-05LP-T301 (Option)

Model Number	Code Number	Length	Notes
UAM-5C10	UZ00066	10m	Bare cable
UAM-5C20	UZ00067	20m	Bare cable

* Extension cable for connector type UAM-05LP-T301C (Option)

Model Number	Code Number	Length	Notes
UAM-5C02C	UZ00081	2m	UAM-05LP-T301 requires 1 cable each
UAM-5C05C	UZ00082	5m
UAM-5C10C	UZ00083	10m
UAM-5C20C	UZ00084	20m

* USB cable (Option)

Model Number	Code Number	Length	Notes
UAM-MUSB	UZ00065	1m	For Area configuration

* Ethernet cable (Option)

Model Number	Code Number	Length	Notes
UAM-ENET	UZ00062	3m	Necessary for distance data output

* Bracket (Option)

Model Number	Code Number	Mounting position	Notes
UAM-BK03	UZ00059	Base mounting
UAM-BK04	UZ00060	Rear mounting
UAM-BK05	UZ00061	Cover of the top-part	For protection of the optical window used in combination with UAM-BK03 or BK04

* Optical window (Option)

Model Number	Code Number	Notes
UAM-W002	UZ00064	For replacement when damaged and only to be fitted by approved personnel

Extension bare cable

Bare cable is for UAM-05LP-T301

Extension connector cable

Connector cable is for UAM-05LP-T301C

USB cable : UAM-MUSB

Ethernet cable : UAM-ENET

Base mounting bracket

UAM-BK03

Rear mounting bracket

UAM-BK04

Cover bracket

UAM-BK05

Optical window

UAM-W002

Specifications

Subject		Specifications
Model		UAM-05LP-T301
Detection Property	Protection Range	Max: 5m
	Warning Range	Max: 20m (Non-safety)^*1
	Distance Tolerance^*2	+100mm
	Detection Capability	From Black-Reflector sheet(1.8%) to Retro- Reflector Sheet
	Detection Range	270°
	Minimum Detectable Width	φ30mm (Max : 1.8m)
		φ50mm (Max : 3.0m)
		φ70mm (Max : 5.0m)
	Scan Frequency	30ms (Rotational Speed 2000rpm)
	Area Pattern	MAX 32 patterns
	Response Time	OFF : 60ms ～ 510ms
	Response Time	ON : 270ms ～ 510ms
Optics	Element	Pulsed Laser Diode
	Wavelength	905nm
	Safety class	Laser Class 1
Type		Type 3 (IEC61496-1,IEC61496-3)
Functional Safety		SIL 2(Type B, HFT=1) (IEC61508)
PFHd		7.8×10^-8 (T1=20year) : When master slave function is not in use
PFHd		1.6×10^-7 (T1=20year) : When master slave function is in use
Housing	Size	80.0mm (W) , 80.0mm (D) , 95.0mm (H) (without cable)
	Weight	0.8kg
	Protection	IP65
	Case Material	Body : Aluminum / Optical Window : Polycarbonate
	Conenection Cable	Flying lead cable length : 3m
Power supply		DC 24V ±10% : when operating with converter power supply
Power supply		DC 24V -30%/+20% : when operating with battery
Supply power	Normal (without load)	6W
Supply power	Max.(with load)	50W
Output	OSSD1/2 (Safety)	Output type (High side SW)
		Output current (Max : 500mA)^*3
		Leak current (Max : 1mA)
		AWG 26
		Load tolerance (L/R=25ms, C=1μF)
	OSSD3/4(Safety) WARNING 1/2 (Non-Safety)	Output types (High side SW) Output current : (Max : 250mA)^*3 Leak current (Max : 1mA) AWG 28 Load tolerance (L/R=25ms, C=1μF)
	RES_REQ 1 RES_REQ 2 MUT_OUT 1 MUT_OUT 2	Output types (PNP Transistor) Output current : (Max : 200mA)^*3 Leak current (Max : 1mA) AWG 28
Input	Area pattern 32 (5 Inputs × 2 Channels) EDM1/EDM2 MUTING1/MUTING2 MUTING3/MUTING4 OVERRIDE1 OVERRIDE2 RESET1/RESET2 ENC_A1/ENC_A2 ENC_B1/ENC_B2	Input Impedance 4.7 kΩ AWG28
Interface	Configuration	USB2.0 (USB micro type-B connector)
Interface	Data output	Ethernet 100BASE-TX (Water proof connector)
Environmental Resistance	Temperature	-10 to + 50 degrees C (No frost)
	Storage Temperature	-25 to + 70 degrees C (No frost)
	Humidity	95% RH with no condensation
	Storage Humidity	95% RH with no condensation
	Surrounding illumination^*4	Less than 1500lx
	Vibration	Frequency range : 10～55 Hz Sweep rate : 1octave/min
	Vibration	Amplitude : 0.35mm ±0.05mm
Shock resistance		Acceleration : 98m/s²(10G) Pulse duration : 16 ms
Outdoor Operation		Not permitted
Altitude		Below 2000m

*1. Distance when reflectance of the object is 90% or above.
*2. Additional distance of 200 mm is needed when the UAM is working under high reflective background.
*3. Total current supply of OSSD output and Warning output should be below 1.0A.
*4. When the light sources are located at ≧5° from the detection plane of UAM.

External dimension

Sensor

Fixed Condition of Rear mounting bracket with Cover bracket

Fixed Condition of Base mounting bracket with Cover bracket
