UGM-50LAP/ UGM-50LAN

Nhận báo giá

Maximum detection range is 120 meters and 190 degrees.

The metal housing protects internal system up to 50G(single).

Its protective structure is IP67.



This model is the best choice for Port, Construction and all other outdoor applications.

UGM-50LAP/ UGM-50LAN
UGM-50LAP/ UGM-50LAN

Giá trên website là giá bán lẻ, liên hệ để có giá tốt nhất !!!


Max. detection distance is 120 meters.
The metal housing protects the internal system.

* Protective structure: IP67

Shock resistance: 50G(Single)

UGM-50LAP/ UGM-50LAN

Shock resistance: 50G(Single)
Vibration resistance: 5G
The Best choice for tough application.

Black object detection at 50meter

UGM-50LAP/ UGM-50LAN

White object can be detected at 120 meters.
Even Black object can be detected at 50 meters.

Fast and High resolution

20msec (Normal mode 3000rpm) / approx. 0.32°(360°/1125)
40msec (Low speed mode 1500rpm) / approx.0.16° (360°/2250)
80msec (High resolution mode 750rpm)/ approx.0.08° (360°/4500)

Optical window contamination warning function

* The sensor has Contamination detection function,
and it will inform you before the malfunction stop.

Multi-Echo Function

UGM-50LAP/ UGM-50LAN

Multi Echo Functionality is ideal for applications in harsh environments such as rain, snow and fog

Thông tin bổ sung

Trọng lượng4200 g
Kích thước155 × 166 × 176 cm

Applications

Many examples for outdoor

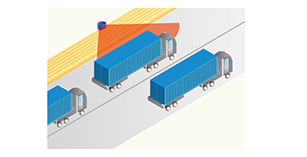

Car Detection

UGM yo12 1594624560

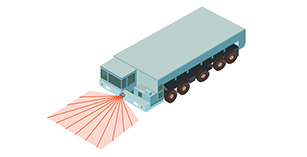

Obstacle Detection

UGM yo03 1594624560

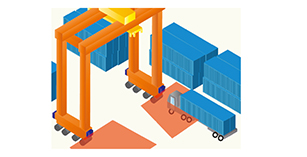

Port

UGM yo02 1594624560

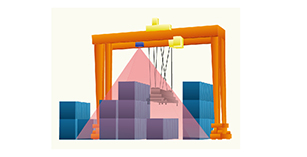

Port

UGM yo01 1594624560

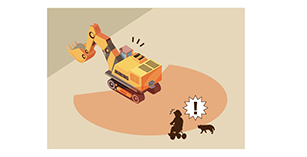

Construction

UGM yo04 1594624560

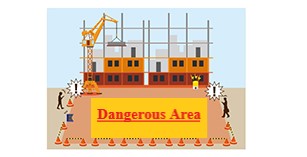

Construction

UGM yo06 1594630542

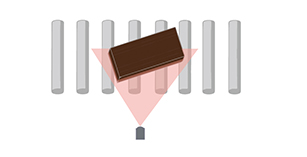

Metal Detection

UGM yo09 1594624560

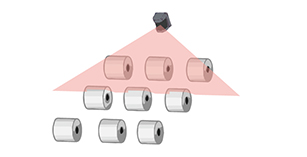

Metal Detection

UGM yo08 1594624560

Model No.

Sensor

ModelCode
UGM-50LAP (PNP output type)UUGM002
UGM-50LAN (NPN output type)UUGM004


Power cable

ModelCodeLength
UGM-4PC005UZ001215m

* 1 cable is needed per scanner.

Ethernet cable

ModelCodeLength
UGM-ENET005UZ001225m

* 1 cable is needed per scanner.

I/O #1 (8pins) cable

ModelCodeLength
UGM-8PC005UZ001235m



I/O #2 (12pins) cable

ModelCodeLength
UGM-12PC005UZ001245m



Brackets

ModelCodeLength
UGM-BK01UZ00125Rear mounting bracket
UGM-BK02UZ00126Base mounting bracket
UGM-BK03UZ00135Cover bracket for optical window

UGM-BK01 (Rear mounting bracket)

UGM op01 1594624654

UGM-BK02 (Base mounting bracket)

UGM op02 1594624654

UGM-BK03 (Cover bracket)

UGM op03 1594624654

Specifications

Product nameScanning Laser Range Finder
ModelUGM-50LAP(PNP type) / UGM-50LAN(NPN type)
Light sourceLaser semiconductor (905nm)
FDA Laser Safety Class 1 (IEC60825-1:2014)
Supply voltageDC 24V±10%
Supply currentSteady state current : 1A or less
Starting current : 1.5A or less, without Heater*1
Power consumption24W or less (Steady state and current)
Heater voltageDC24V
Heater currentSteady state and Starting current : 2A or less, Only Heater*2
Heater
power consumption
48W or less
Detection range and objectGuarantee detection range:
0.1m to 50m*3 (10% Reflectance Black paper 500mm×500mm )
0.1m to 120m*4 (90% Reflectance white Kent paper1400mm×1400mm )
Maximum detection distance: 120m (Distance output range: 160m)
Minimum detectable size
Normal mode: 65mm (5m) , 130mm (10m), 260mm (30m)
High Resolution mode: 33mm (5m) , 65mm (10m), 130mm (30m)
Average Accuracy by distance10% Reflectance Black paper
0.1m to 30m : ±30mm (Indoor 1,000lx or less)
30m to 50m : ±40mm (Indoor 1,000lx or less)
0.1m to 50m : ±50mm*5 (Outdoor 100,000lx or less)
90% Reflectance white Kent paper
0.1m to 50m : ±30mm
0.1m to 50m : ±50mm*5 (Outdoor 100,000lx or less)
Measurement
resolution
1mm
Repeat accuracy10% Reflectance Black paper
0.1m to 30m :σ < 9mm (Indoor 1,000lx or less)
30m to 50m :σ < 15mm (Indoor 1,000lx or less)
0.1m to 50m :σ < 15mm*5 (Outdoor 100,000lx or less)
90% Reflectance white Kent paper
0.1m to 50m :σ < 9mm (Indoor 1,000lx or less)
0.1m to 50m :σ < 15mm*5 (Outdoor 100,000lx or less)
Scanning angle190°
Scan speed/
Angular resolution
20ms*6 (Normal mode 3000rpm) / approx. 0.32°(360°/1125)
40ms*6 (Low speed mode 1500rpm) / approx.0.16° (360°/2250)
80ms*6 (High resolution mode 750rpm) / approx.0.08° (360°/4500)
Start up timeWithin 30 sec after power supply
Outputs7 PNP/NPN OUTPUT : Synchronization master output, Synchronization output,
Malfunction output, Contamination output, Area detection 1 to 3
(Open collector output DC30V 50mA MAX.)
Output response time40msec or less (Normal mode)
80msec or less (Low speed mode)
160msec or less (High resolution mode)
In either case, change depending upon the delay setting
Inputs7 INPUT : Synchronous input, IP Reset input, Reboot input, Area input 1 to 4
(All 15 patterns)
(Photo coupler input, Cathode/Anode common, Input ON current 2mA)
InterfaceEthernet 100BASE-TX (Auto-negotiation)
LED display4 LEDs (Yellow Green, Orange, Blue, Red)
Ambient temperature
and humidity
-10 to +50°C below 85%RH
-30 to +50°C below 85%RH (While using the heater)
(Without dew, frost)
Environment effectA measured distance will be shorter than an actual distance under the influence of rain, snow and direct sunlight.*7
Vibration resistance10 to 150Hz 5G (IEC60068-2-6:2007)
Shock resistance3 times 50G, 1000 times 25G (IEC60068-2-27:2008)
EMC standards(EMI)
EN61326-1:2013
EN55011:2009 + A1:2010
(EMS)
EN61326-1:2013
EN61000-4-2:2009
EN61000-4-3:2006 + A1:2008 + A2:2010
EN61000-4-4:2012
EN61000-4-6:2009
EN61000-4-8:2010
Protective structureIP67 (IEC60529:2001)
Insulation resistance10MΩ
WeightApprox. 4.2kg (without connection cables)
MaterialOptical window : Polycarbonate, Body : Aluminum
Dimensions(W×D×H)155mm × 166mm × 176mm (Without connector)
External dimension:MC40-03391

Notes:
*1 When a heater power is not connected or OFF.
*2 This is the current consumption of only heater.
Details of heater operation is described in Specification.
*3 Indoor environment (under fluorescent lamps, 1,000 lx or less)
*4 In the high resolution mode(750rpm), the guarantee detection range is 120m.
*5 Detection cannot be guaranteed when direct light (such as sunlight) enters into the inside of the product.
*6 You must restart the sensor after changing the scan speed.
*7 Please check the influence of ambient environment on the detection accuracy using a product.

External dimension

UGM-50LAP / UGM-50LAN

UGM1 1594625083

Rear mounting bracket

UGM ga2 1594625083

Base mounting bracket

UGM ga3 1594625083

Cover with rear mounting bracket

UGM ga4 1594625083

Cover with base mounting bracket

UGM ga5 1594625083

I/O circuit

Input/Output Circuit

IO UGM 50LA

Input: Photocoupler input (Cathode/Anode common, 2mA during each input ON, 0.5 mA or below during OFF)
Output:Open-collector output

ItemSpecification
Maximum Output current50mA
Maximum voltage30V
Output residual voltage1V or less
+COM Power supply range24±10%V

Power supply connector

UGM ny2 1594625409

M12 4 core A-code socket (Female)

PIN No.FunctionColor
1Sensor power supply
+V (24V±10%)
Brown
2Heater power supply
(24V±10%)
White
3Sensor power supply GND
-V (0V)
Blue
4Heater power supply
GND(0V)
Black

Ethernet connector

UGM ny3 1594625409

M12 4 core D-code plug (Male)

PIN No.FunctionColor
1TX+Orange
2RX+Green
3TX-Orange/White
4RX-Green/White

I/O #1 connector

UGM ny4 1594625409

I/O1 : M12 8 core A-code socket (Female)

PIN No.FunctionI/OColor
1RebootINBrown
2IP ResetINWhite
3Synchronization inputINOrange
4Synchronization outputOUTYellow
5Synchronization master outputOUTGreen
6NCBlue
7+COMPurple
8-COMBlack

I/O #2 connector

UGM ny5 1594625409

I/O2 : M12 12 core A-code socket (Female)

PIN No.FunctionI/OColor
1Contamination outputOUTBrown
2NCBlack
3Malfunction outputOUTRed
4Area output 1OUTOrange
5Area output 2OUTYellow
6Area output 3OUTGreen
7Area input 1INBlue
8Area input 2INPurple
9Area input 3INGray
10Area input 4INWhite
11+COMPink
12-COMLight Green
