SOKUIKI sensor for intelligent robots
Scanning speed is 10ms/scan!
Ethernet interface type of Top-URG.
| Trọng lượng | 210 g |
|---|---|
| Kích thước | 0.62 × 0.62 × 0.875 cm |
| Model | UTM-30LX-FEW |
| Light Source | Laser Semiconductor λ = 905nm Laser Class 1 |
| Power Source | 12VDC ± 10% |
| Supply Current | MAX : 1.2A, Normal : 0.7A |
| Detection Range and Detection Object | Guaranteed Range:0.1 to 30m(White Kent Sheet)*2 Maximum Range: 60m(Measurement limit) Minimum detectable width at 10m : 230mm(Vary with distance) |
| Accuracy | 0.1 to 10m : ±30mm,10 to 30m : ±50mm(White Kent Sheet)*2 Under 3000lx : White Kent Sheet : ±30mm*1(0.1 to 10m) Under 100000lx : White Kent Sheet : ±50mm*1(0.1 to 10m) |
| Measurement Resolution and Repeated Accuracy | 1mm 0.1 to 10m : σ<10mm,10 to 30m : σ<30mm(White Kent Sheet)*2 Under 3000lx : σ<10mm*1(White Kent Sheet up to 10m) Under 100000lx : σ<30mm*1(White Kent Sheet up to 10m) |
| Scan Angle | 270° |
| Angular Resolution | 0.65°(270°/416) |
| Scan Speed | 10ms |
| Interface | Ethernet 100BASE-TX(Auto-negotiation) |
| Output | Synchronous Output 1-Point |
| LED Display | Green : Power supply. Orange : Normal Operation(Continuous),Malfunction(Blink) |
| Ambient Condition | -10 to +50 degrees C |
| (Temperature,Humidity) | Less than 85%RH(Without Dew,Frost) |
| Storage Temperature | -25 to +75 degrees C |
| Environmental Effect | Measured distance will be shorter than the actual distance under the influence of rain, snow and direct sunlight*3. |
| Vibration Resistance | 10 to 55Hz Double amplitude 1.5mm in each X, Y, Z axis for 2hrs. 55 to 200Hz 49m/s2 sweep of 2min in each X, Y, Z axis for 1hrs. |
| Impact Resistance | 196m/s2 In each X, Y, Z axis 10 times. |
| Protective Structure | IP67 (IEC Standard)*4. |
| Insulation Resistance | 10MΩ DC500V Megger |
| Weight | 210g (Without cable) |
| Case | Polycarbonate |

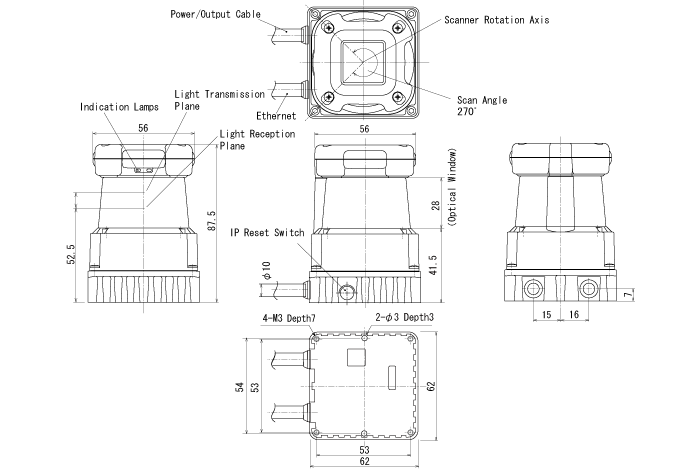

| External Dimension (W×D×H) | 62mm×62mm×87.5mm |
*1 Under Standard Test Condition (Accuracy can not be guaranteed under direct sunlight.)
*2 Indoor environment with less than 1000lx.
*3 Please perform necessary tests with the actual device in the working environment.
Use data filtering techniques to reduce the effect of water droplets when detecting objects under the rain.
*4 The protective structure of Ethernet connector is not IP67.
