UTM-30LX-EW
SOKUIKI sensor for intelligent robots
Ethernet interface type of Top-URG.
Protection structure is improved to IP67,
and it is more suitable for outdoor use even in the environment with 100,000lx.
-> Supply voltage 12V
-> Measurement distance 30m
-> Field of view 270°
-> Interface Ethernet
-> Multi-echo
-> Protective structure IP67
Thông tin bổ sung
| Trọng lượng | 210 g |
|---|---|
| Kích thước | 0.62 × 0.62 × 0.875 cm |
Applications
Examples
Environment recognition for service robots
Behavior tracking for marketing research
With customer’s self-developed algorithm, it is possible to track people’s path and actions within a specified range.
Specifications
Specifications
| Model | UTM-30LX-EW |
| Light Source | Laser Semiconductor λ = 905nm Laser Class 1 |
| Power Source | 12VDC ± 10% |
| Supply Current | MAX : 1A, Normal : 0.7A |
| Power Consumption | Less than 8W |
| Detection Range and Detection Object | Guaranteed Range: 0.1 to 30m(White Kent Sheet)*2 Maximum Range: 0.1 to 60m Minimum detectable width at 10m: 130mm(Vary with distance) |
| Accuracy | 0.1 to 10m : ±30mm,10 to 30m : ±50mm(White Kent Sheet)*2 Under 3000lx : White Kent Sheet : ±30mm*1(0.1 to 10m) Under 100000lx : White Kent Sheet : ±50mm*1(0.1 to 10m) |
| Measurement Resolution and Repeated Accuracy | 1mm 0.1 to 10m : σ<10mm,10 to 30m : σ<30mm(White Kent Sheet)*2 Under 3000lx : σ=10mm*1(White Kent Sheet up to 10m) Under 100000lx : σ=30*1(White Kent Sheet up to 10m) |
| Scan Angle | 270° |
| Angular Resolution | 0.25°(360°/1440) |
| Scan Speed | 25ms(Motor speed : 2400rpm) |
| Interface | Ethernet 100BASE-TX(Auto-negotiation) |
| Output | Synchronous Output 1-Point |
| LED Display | Green : Power supply. Red : Normal Operation(Continuous),Malfunction(Blink) |
| Ambient Temperature | -10 to +50 degrees C |
| Ambient Humidity | Less than 85%RH(Without Dew,Frost) |
| Storage Temperature | -25 to +75 degrees C |
| Environmental Influence | Measured distance will be shorter than the actual distance under rain, snow and direct sunlight*2. |
| Vibration Resistance | 10 to 55Hz Double amplitude 1.5mm in each X, Y, Z axis for 2hrs. 55 to 200Hz 98m/s2 sweep of 2min in each X, Y, Z axis for 1hrs. |
| Impact Resistance | 196m/s2 In each X, Y, Z axis 10 times. |
| Protective Structure | Optics: IP67(Except Ethernet connector) |
| Insulation Resistance | 10MΩ DC500V Megger |
| Weight | 210g (Without cable) |
| Case | Polycarbonate |
| External Dimension (W×D×H) | 62mm×62mm×87.5mm |
*1 Under Standard Test Condition (Accuracy can not be guaranteed under direct sunlight.)
*2 Indoor environment with less than 1000lx.
Please perform necessary tests with the actual device in the working environment.
Use data filtering techniques to reduce the effect of water droplets when detecting objects under the rain.

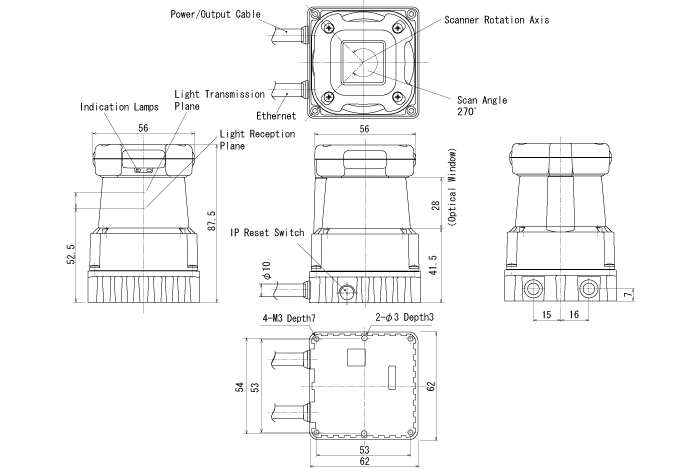

External dimension
