100Mbps optical repeater which can directly connect to the Ethernet line.
Setting of MAC address or IP is not required and it can be used as LAN cables. Non-contact transmission is available for up to 100m between moving devices.

EWF-0E/1E
EWF-0E/1E

Giá trên website là giá bán lẻ, liên hệ để có giá tốt nhất !!!


EWF-0E/1E

Overview

-> 100Mbps optical repeater that can connect to the Ethernet line directly.
-> Setting of MAC address or IP is not required and it can be used as LAN cables.
-> Non-contact communication is available for up to 100m between moving devices.

Specifications

Specifications

Model No.EWF-0EA-01/0EB-01EWF-1EA-01/1EB-01
Transmission distance50m100m
Directional angleFull angle 1.4°Full angle 0.7°
Power source24VDC(±10%)
Current consumption150mA(24VDC)
Transmission systemFull-duplex two-way transmission
Transmission speed100Mbps
Laser safety standardClass 2M
InterfaceEthernet
Communication standerdIEEE802.3u 100BASE-TX Auto-negotiation compliant
Modulation systemDirect modulation
ConnectionMini clamp connector(Power/CD signal),Modular jack RJ-45(Ethernet)
Ambient temperature/humidity-10°C to +50°C,85%RH or less(non icing)
Ambient illuminance10000lux or less(Halogen/mercury lamp)
Impact resistance490m/s2, Each 10 times in X, Y and Z directions
Vibration resistanceDouble amplitude 1.5mm,10 to 55Hz,each 2 hours in X, Y and Z direction
Protective structureIP40
Reception output(CD)Photo-coupler open-cellector(Withstand pressure 35V), ON when receiving light(Max.50mA, residual voltage 1.5V)
Level voltage output(Analog output)Approx.0 to 3V, connector S2B-PH-K-S(JST)
This is available only when adjusting the optical axis.
External wiring is forbidden.

External dimension

External dimension

External dimension

ewf ed

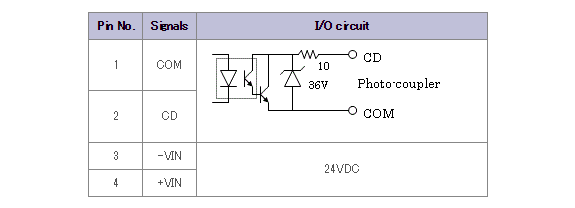

I/O circuit

I/O Circuit

Input/output circuit

ewf e

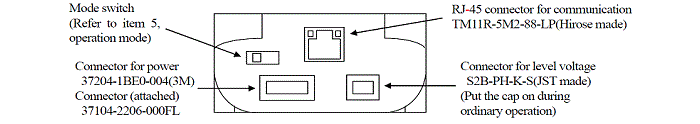

Connection

ewf e conn

Caution about laser safety

ewf e atten

This product emitts laser beam and complies with laser safety Class2 (JIS C6802:2005/IEC60825-1).
