High-frequency noise resistance type of DMS series.
The Optical Data Transmission Device to meet the needs of compactness and lightness.

Body size 50x50x20mm is only half of our previous model DM series.

Weight 210g is much lighter than before.

DMS-G/H-E
DMS-G/H-E

Giá trên website là giá bán lẻ, liên hệ để có giá tốt nhất !!!


Features

This is Optical Data Transmission Device (Parallel I/O) suitable for such as interlocking with carrier robots, indicating destination of AGVs.

*This is high-frequency noise resistance type of DMS series.
*NPN and PNP type are lined up.
*This is compatible with SEMI E84.

Easy friendly to control with parallel signals

Easy friendly to control with parallel signals

This products have parallel signals of maximum 8 points each for input and output, it does not require difficult signal processing. *DMS-GA1-E and DMS-HA1-E are 4 bit type.

Communicable with wireless between AGVs and Stations

Communicable with wireless between AGVs and Stations

This performs transmission using optical light, so it is possible to communicate wirelessly with mobile vehicles that are hard to lay cables. It can be used for communication to between the stations and mobile vehicles like AGVs to instruct the destination where the vehicles should go.

High-Frequency Noise Resistance

Noise resistance and disturbance light characteristics have been improved.
This device can also communicate with the original DMS and DMG series.

2 types of optical axis direction selectable based on the installation way

2 types of optical axis direction selectable based on the installation way

2 types of HEAD-ON and SIDE-ON are lined up.

Specifications

Specification

TypeNPN Output type
4-bit type8-bit type
Model No.DMS-GA1-EDMS-HA1-EDMS-GB1-EDMS-HB1-EDMS-GB2-EDMS-HB2-E
Directional mountingHead-onSide-onHead-onSide-onHead-onSide-on
Transmision distance1.0m*1.0m*3.0m*
Directional angle
(Full angle)
20°20°10°
Transmission methodHalf-duplex two-way transmission
Transmission time40ms
Modulation methodPulse modulation
Detection methodParity check
Power source24VDC(10~30V)
Current consumption100mA Max.
Ambient illuminance4,000lx or less
Ambient temperature/humidity-10~50℃・85RH or less
Vibration resistanceDouble amplitude 1.5mm 10~55 Hz, each 2 hours in X,Y and Z directions
Impact resistance500m/s2 each 10 times in X,Y and Z directions
ConnectionFlying lead cable
(0.2mm2 15-core shield wire)
Flying lead cable(0.2mm2 22-core shield wire)
Protective structureIP64 (not included the connector)
InputContact or non-contact open-collector input
(ON current 2.5mA or more, OFF current 1mA or less, Operation threshold current 1.5~2mA)
OutputNPN open collector-output(30VDC・50mA、Residucal voltage 1.8V or less)

* When communicating with 1m/3m specification products other than DMS-G/HB1/2-E type, the transmission distance will be 0.6m/1.8m respectively.

Notes

TypePNP Output type
8-bit type
Model No.DMS-GB1-E70DMS-HB1-E70DMS-GB2-E70DMS-HB2-E70
Directional mountingHead-onSide-onHead-onSide-on
Transmision distance1.0m*3.0m*
Directional angle(Full angle)20°10°
Transmission methodHalf-duplex two-way transmission
Transmission time40ms
Modulation methodPulse modulation
Detection methodParity check
Power source24VDC(10~30V)
Current consumption100mA Max.
Ambient illuminance4,000lx or less
Ambient
temperature/humidity
-10~50℃・85RH or less
Vibration resistanceDouble amplitude 1.5mm 10~55 Hz, each 2 hours in X,Y and Z directions
Impact resistance500m/s2 each 10 times in X,Y and Z directions
ConnectionFlying lead cable(0.2mm2 22-core shield wire)
Protective structureIP64 (not included the connector)
InputContact or non-contact open-collector input(LOW: 0~6V HIGH: 11~30V)
OutputPNP open-collector output(Output current MAX. 50mA)

* When communicating with 1m/3m specification products other than DMS-G/HB1/2-E type, the transmission distance will be 0.6m/1.8m respectively.

Model No.

Model

Model numberCode numberDirectional mountingTransmission distanceSignals
DMS-GA1-EWDMS214Head-on1m*4-bit
DMS-GB1-EWDMS1918-bit
DMS-GB2-EWDMS1953m*
DMS-GB1-E70WDMS1931m*
DMS-GB2-E70WDMS1973m*
DMS-HA1-EWDMS205Side-on1m*4-bit
DMS-HB1-EWDMS1928-bit
DMS-HB2-EWDMS1963m*
DMS-HB1-E70WDMS1941m*
DMS-HB2-E70WDMS1983m*

* When communicating with 1m/3m specification products other than DMS-G/HB1/2-E type, the transmission distance will be 0.6m/1.8m respectively.

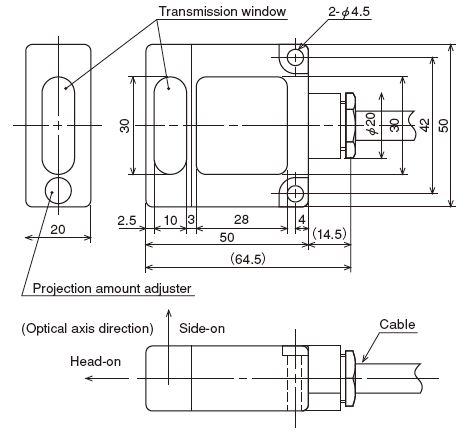

External dimension

External dimension

Common to NPN and PNP types

I/O circuit

I/O Circuit

Connection (NPN type) (Drawing is 4-bit type on the left, 8-bit type on the right)

Connection (NPN type)  (Drawing is 4-bit type on the left, 8-bit type on the right)
■Cable Outline

4BIT type8BIT type
ItemSizeItemSize
Conductor size25AWGConductor size25AWG
Conductor outer diameter0.54mmConductor outer diameter0.54mm
Wire core outer diameter1.04mmWire core outer diameter1.04mm
Finished outer diameter7.0mmFinished outer diameter8.2mm

■Pin No.
4 BIT type

ColorsPin No.Functions
Black1IN1
Brown2IN2
Red3IN3
Orange4IN4
White/Yellow5MODE
Yellow6SELECT
White/Blue7NC
Green8OUT1
Blue9OUT2
Purple10OUT3
Gray11OUT4
White12GO
Yellow/Green13COM (0V)
Yellow/Red14+VIN
Yellow/ Black15-VIN (0V)
ShieldShield

8 BIT type

Connector(1)Connector(2)
ColorsPin No.FunctionsColorsPin No.Functions
Light blue1COMGreen1IN5
Pink2MODE*1Green/Black2OUT5
White3SELECT*2Blue3IN6
White/Black4GO*3Blue/Black4OUT6
Brown5IN1Purple5IN7
Brown/Black6OUT1Purple/Black6OUT7
Red7IN2Gray7IN8
Red/Black8OUT2Gray/Black8OUT8
Orange9IN3Pink/Black9+VIN
Orange/Black10OUT3Light blue/Black10-VIN
Yellow11IN4ShieldShield
Yellow/Black12OUT4

*1 This is designed to select standby transmission and reception mode.
●Transmission standby mode when it is opened between MODE and I/O COM.
●Reception standby mode when it is short circuited between MODE and I/O COM.

*2 Select input
This is designed to arbitarily stop transmission and reception operation by outside signal.
●Operated when it is opened between SELECT and I/O COM.
●Stops operation when it is short circuited between SELECT and I/O COM.

*3 GO output
This is designed to check for correct reception of optical signal.
●It is ON when optical signal is receiving.
●It is OFF when optical signal is interrupted (or non-receiving state).
Note) Terminal ends handling of not using Input, Output, SELECT input, MODE input are to be treated individually and not connecting to the other cables. If handled in one treatment, it will cause malfunction.
Note) The connector attached on the end of cable can not be used as connecting terminal.
Note) COM and -VIN are shorted internally.

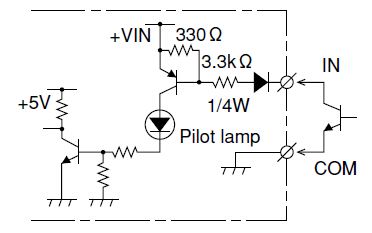

Input section (NPN)

Input section (NPN)
ON current: 2.5mA or more, OFF current: 1mA or less
Operation threshold current: 1.5~2mA

Output section (NPN)

Output section (NPN)
NPN open-collector output
30VDC 50mA or less
Residual voltage 1.8V or less

Connection (PNP type : 8-bit type only available)

Connection (PNP type : 8-bit type only available)
■Cable Outline

8BIT type
ItemSize
Conductor size25AWG
Conductor outer diameter0.54mm
Wire core outer diameter1.04mm
Finished outer diameter8.2mm

■Pin No.

Connector(1)Connector(2)
ColorsPin No.FunctionsColorsPin No.Functions
Light blue/Black1-VINPink1MODE*1
Pink/Black2+VINWhite/Black2GO*3
Brown3IN1Gray/Black3OUT8
Red4IN2Purple/Black4OUT7
Orange5IN3Blue/Black5OUT6
Yellow6IN4Green/Black6OUT5
Green7IN5Yellow/Black7OUT4
Blue8IN6Orange/Black8OUT3
Purple9IN7Red/Black9OUT2
Gray10IN8Brown/Black10OUT1
White11SELECT*2ShieldShield
Light blue12COM

*1 This is designed to select standby transmission and reception mode.
●Transmission standby mode when it is opened between MODE and I/O +VIN.
●Reception standby mode when it is short circuited between MODE and I/O +VIN.

*2 Select input
This is designed to arbitrarily stop transmission and reception operation by outside signal.
●Operated when it is opened between SELECT and I/O +VIN.
●Stops operation when it is short circuited between SELECT and I/O +VIN.

*3 GO output
This is designed to check for correct reception of optical signal.
●It is ON when optical signal is receiving.
●It is OFF when optical signal is interrupted (or non-receiving state).
Note) Terminal ends handling of not using Input, Output, SELECT input, MODE input are to be treated individually and not connecting to the other cables. If handled in one treatment, it will cause malfunction.
Note) The connector attached on the end of cable cannot be used as connecting terminal.
Note) COM and -VIN are shorted internally.

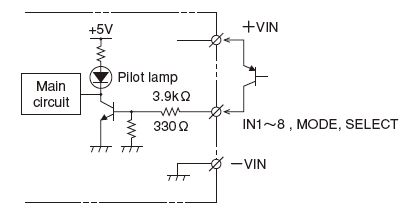

Input section (PNP)

Input section (PNP)
LOW: 0~6V
HIGH: 11~30V

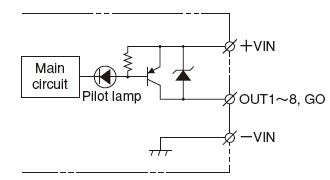

Output section (PNP)

Output section (PNP)
PNP open-collector output
Max. 30VDC 50mA

Characteristics Data

Characteristics Data

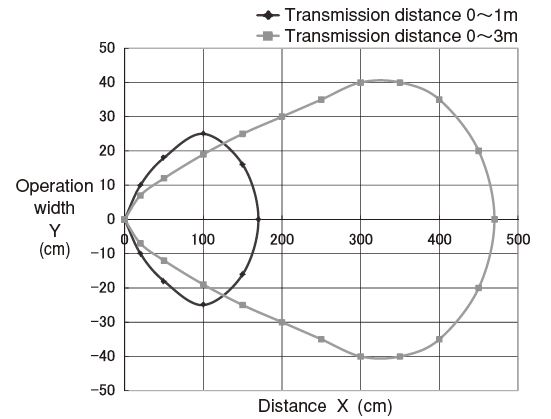

Transmission area

Transmission area
When communicating with the 1m/3m specification product other than DMS-G/HB1/2-E, the transmission distance will be 0.6m/1.8m.
