Overview

-> This is a new optical fiber type CMD using LED as light source. This equipment is composed of transmitter(Sensor head, heat-resistance fiber and amplifier) and receiver and detects steel material which passes through between them.
-> This doesn’t specify power source. It is capable of being used within the scope of 100 to 240VAC.
-> Water-cooling or air-purge isn’t required for sensor head because non-air dust purge hood is applied.
-> 8-point LED display unable to monitor the margin and emitting state.
-> Warning output is provided.

Specifications

Specifications

Model No.Amplifier : PHV-10P(Projector), PHV-10A(Receiver)
Sensor head : FHM-201, FHM-211-1
Fiber unit*1 : FHV-321(2m), FHV-351(5m), FHV-411(10m)
Detectable objectsSteel material withφ30mm or more(FHM-201)
Steel material withφ50mm or more(FHM-211-1)
Detecting distance20m((Detection margin : 80 times or more at 20m*2)
Power source100 to 240VAC(+10%, -15%, 50/60Hz)
Power consumptionProjector : 4VA or less, Receiver : 5.5VA or less
Control output1C relay contact(250VAC 3A, 30VDC 5A, COSφ=1),
Photo-coupler(120V or less, 100mA)
Warning output
Light-emitting amount Lowering output
Analog voltage outputDC voltage output in proportion to light-reception amount(Saturated value 10V or more but do not use it except for adjustment)
Response timeContact output : 10msec or less, photo-coupler output : 3msec or less
Operating modeChangeover of DARK-ON/LIGHT-ON
ConnectionConnector type(Cable 2m)
Fiber unit characteristicsAllowable bending radius : 100mm, Max. pressure : 784MPa, Tension strength : 490N
Ambient illuminanceIncandescent lamp : 10,000lx
Ambient temperatureAmplifier:-10 degrees C to +55 degrees C,
Sensor head/Fiber unit:-10 degrees C to +200 degrees C
Ambient humidity45 to 85%RH(Not icing)
Insulation resistance20MΩ or more(Between power/output contact and case by 1,000V megger)
Withstand voltage1,500VAC/min. (Between power/output contact and case)
Vibration resistance10 to 55Hz Double amplitude 1.5mm Each 2 hour in X, Y and Z directions
Impact resistance490m/s2, Each 3 time in X, Y and Z directions
Protective structureAmplifier : IP64(IEC standard)
Sensor head : IP66(IEC standard)
Fiber unit : Corrugated tube with blade(SUS)
CaseAmplifier : Aluminum die-casting, Sensor head : Aluminum
WeightAmplifier : Approx. 950g
Sensor head : FHM-201 approx. 1.2kg, FHM-211-1 approx. 1.5kg
Fiber unit : FHV-321 approx. 1.0kg, FHV-351 approx. 1.8kg, FHV-411 approx. 2.8kg

*1 3m, 15m and 20m type are also available.
*2 In case of using FHV-321 and FHM-211
*PhotoMOS relay type is also available.

External dimension

External dimension

External dimension

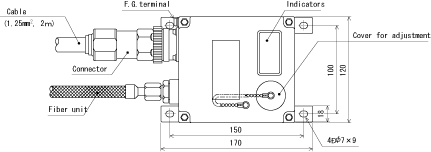

prv 10 ed1

External dimension

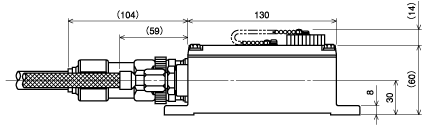

prv 10 ed2

I/O circuit

I/O Circuit

Projector

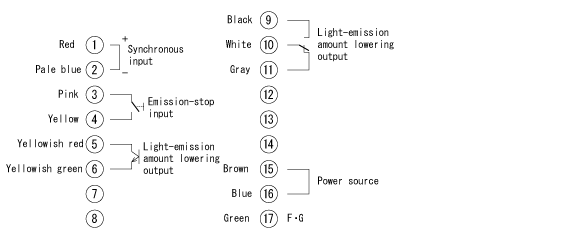

phv 10 setuzoku1

Light-projecting amount lowering output

Operating modeNOMALABNOMAL
Pin No. of connector5-69-1010-115-69-1010-11
Power-OFF stateOFFOPENCLOSEOFFOPENCLOSE
Power-ON stateWhen normalONCLOSEOPENOFFOPENCLOSE
When troubledOFFOPENCLOSEONCLOSEOPEN

Receiver

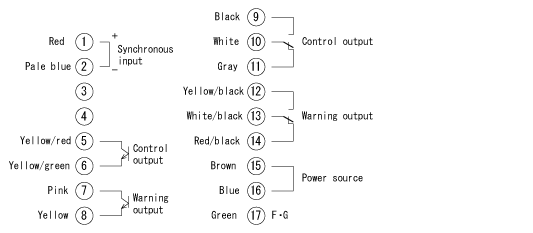

phv 10 setuzoku2

Control output(Changeover by inner switch)

Operating modeLight-ONDark-ON
Pin No. of connector5-69-1010-115-69-1010-11
Power-OFF stateOFFOPENCLOSEOFFOPENCLOSE
Power-ON stateWhen light-enteringONCLOSEOPENOFFOPENCLOSE
When light-interruptingOFFOPENCLOSEONCLOSEOPEN

Warning output

Pin No. of connector7-812-1313-14
Power-OFF stateOFFOPENCLOSE
Power-ON stateWhen normalONCLOSEOPEN
When troubledOFFOPENCLOSE

Characteristics Data

Characteristics Data

Steel temperature characteristics

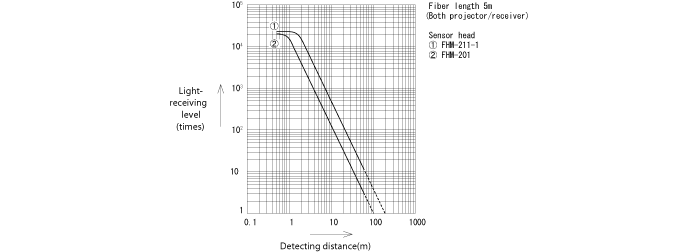

phv 10 tokusei
