Easy-to-see display with small size!
Low-profile and backlight!!



Compare with the traditional model, this new series is much smaller and thinner.
Backlight in the screen makes it easy to see.
Lifetime is improved by suing the sheet switch in the key board.

Giá trên website là giá bán lẻ, liên hệ để có giá tốt nhất !!!


BRS

Overview

-> Small size/low-profile/pocket-size.
-> 15 points and 4 points type are lined-up.
-> 999 kind of ID can be set and speed dial can be made.
-> Durability is much improved because sheet switch is applied instead of mechanical switch.

Applications

Examples

Remote control of OHT

brs rei1

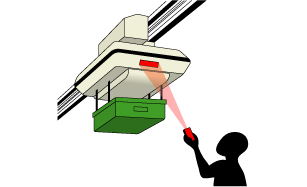

It can make a manual operation when testing or system troubled.



Notice of loading completion

brs rei2

Notice of loading completion/transmission of destination

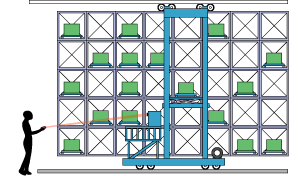

It can instruct load completion or destination from driver on automated warehouse.



Pallet choice at tower parking

brs rei3

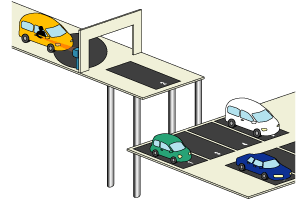

It can choose the specified pallet inside car.



Opening/closing of shutter

brs rei4

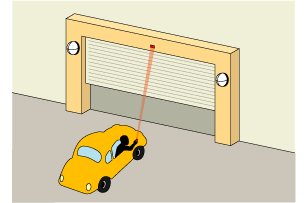

It can remote-control for garage/factory.

Specifications

Specifications

Transmitter

Model No.BRS-G24TBRS-G2CT
Power sourceAlkaline cell(4 pcs)
Battery life16 hours under continuous use(when not using backlight)
Transmission distance10m
Directional angleFull angle 30°
DisplayLCD 3 digits, battery, transmission(with backlight)
Key numbersNumerical key:4 points, setting key:5 points, built-in electronic buzzerNumerical key:15 points, setting key:3 points, built-in electronic buzzer
ID No. settingMax. 999 kinds(it can be set as your option)
Setting functions1. ID No. setting
2. Automatic power-OFF time
3. Backlight OFF time
4. Buzzer sound
5. Double-press available
6. ID No.speed dial registration
7. Reset(return to initial setting)
ElementInfrared LED(870nm)
Modulating methodPulse-position modulation(455kHz)
Error detectionTwice coincident system
Ambient temperature0 to +40 degrees C
Ambient humidity45 to 85%RH, not icing, not condensing
Vibration resistanceDouble amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z direction
Impact resistance490m/s2, each 6 time in X, Y and Z directions
Protective structureKeys surface : IP64(IEC strandard), the other : IP40(IEC standard)
CasePolycarbonate
WeightApprox. 110g(including battery)


Receiver

Model No.BRS-G24RBRS-H24RBRS-G2CRBRS-H2CR
DirectionHead-ONFront-ONHead-ONFront-ON
Power source24VDC±10%
Current consumption50mA or less
Directional angleRight/left : full angle 90°, up/down : full angle 40°
ID No. setting999 kinds, Turning counterclockwise : write-in mode(from transmitter), Turning clockwise : operation mode
Output*Data output : 4 points, strobe 1 pointsData output : 15 points, strobe 1 points
NPN open-collector output (30DVC, 50mA or less, Residual voltage 1.8V or less
Output holding time100msec or more
Receiving systemPulse position modulation(455KHz), Twice coincident system
Indication lampOutput lamp : data output (OUT1 – 4) 4 points, strobe output(STB) 1 pointOutput lamp : data output (OUT1 – 15) 15 points, strobe output(STB) 1 point
Receiving lamp(RCV) : 1 point, write-in lamp(WRT) : 1 point, power lamp(POW) : 1 point
ConnectionCable(connector at the end)
Ambient illuminance4,000lx(Fluorescent/mercury lamp)
Ambient temperature-10 to +50 degrees C
Ambient humidity45 to 85%RH, not icing, not condensing
EnvironmentNo corrosive gas
Insulation resistance10MΩ(500VDC megger)
Noise resistanceConformity standard IEC(EN) 61000-4-2/-3/-4/-6/-8
Vibration resistanceDouble amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z direction
Impact resistance490m/s2, each 6 time in X, Y and Z directions
Protective structureIP64(IEC standard)
Case materialsPolycarbonate
WeightApprox. 240g

*Output only when ID No. from transmitter would be coincident with set.

External dimension

External dimension

Transmitter(4 points)

brs g24t ed

Transmitter(15 points)

brs g2ct ed

Receiver

brs g r ed

I/O circuit

I/O Circuit

Receiver with 4 points output

brs g24t out

NPN open-collector output
30VDC, 50mA or less, residual voltage 1.8V or less

Receiver with 15 points output

brs g2ct out

NPN open-collector output 30VDC, 50mA or less, residual voltage 1.8V or less

Connection /4 points output

brs g24t conn

ColorsPin No.Functions
Red1OUT1
Yellow2OUT2
Green3OUT3
Black4OUT4
White5STB*
Brown6+VIN
Blue7-VIN
ShieldShield

*Turn ON when data would be fixed.
Note) Don’t use attached connector as relay terminal.

Connection /15 points output

brs g2ct conn

Receiver with 15 points output

ColorsPin No.FunctionsColorsPin No.Functions
BrownCN1-5OUT9Orange/blackCN1-10OUT3
RedCN1-7OUT10Yellow/blackCN1-12OUT4
OrangeCN1-9OUT11Green/blackCN2-2OUT5
YellowCN1-11OUT12Blue/blackCN2-4OUT6
GreenCN2-1OUT13Purple/blackCN2-6OUT7
BlueCN2-3OUT14Gray/blackCN2-8OUT8
PurpleCN2-5OUT15White/blackCN1-4COM
GrayCN2-7STB*Pale blueCN1-1-VIN
WhiteCN1-3Pink/blackCN2-9+VIN
Pale blue/blackCN2-10-VIN
PinkCN1-2ShieldShield
Brown/blackCN1-6OUT1
Red/blackCN1-8OUT2

*Turn ON when data would be fixed.
Note) Don’t use attached connector as relay terminal.
