Sensor Head and Fiber Unit for CMD/HMD

Nhận báo giá

This is a sensor head for HMD/CMD. Non-air dust- purge hood is provided.
Sensor head such as with standing bad environment is also lined-up.
Semiconductor laser type detectors and other various products suitable for severe environments.

Sensor Head for CMD/HMD

This is a sensor head for HMD/CMD. Non-air dust- purge hood is provided.

Sensor head such as with standing bad environment is also lined-up.

Semiconductor laser type detectors and other various products suitable for severe environments.

External dimension

External dimension

●Sensor head / FHM-201

●Sensor head / FHM-201

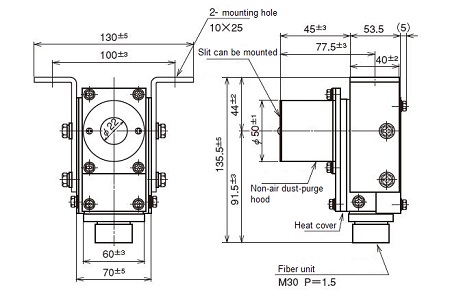

FHM-111-4

FHM-211-1

FHM-201-8WA

FHM-311

FHM-203

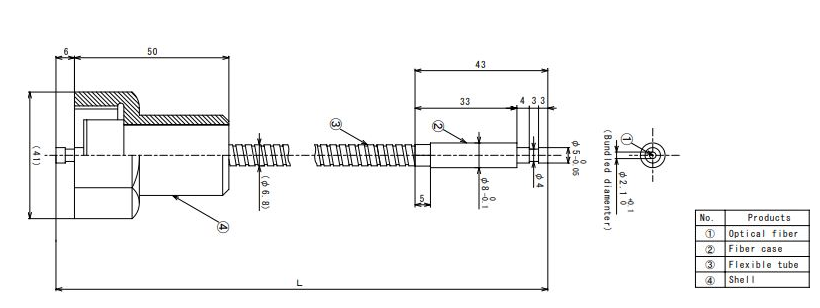

●Fiber unit / FHL series

●Fiber unit / FHL series

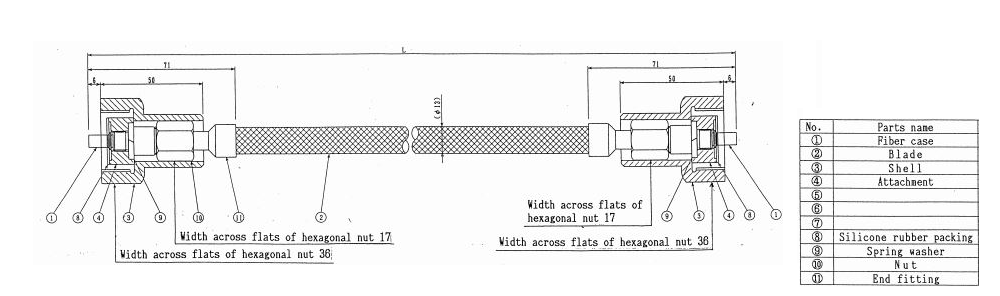

FH series

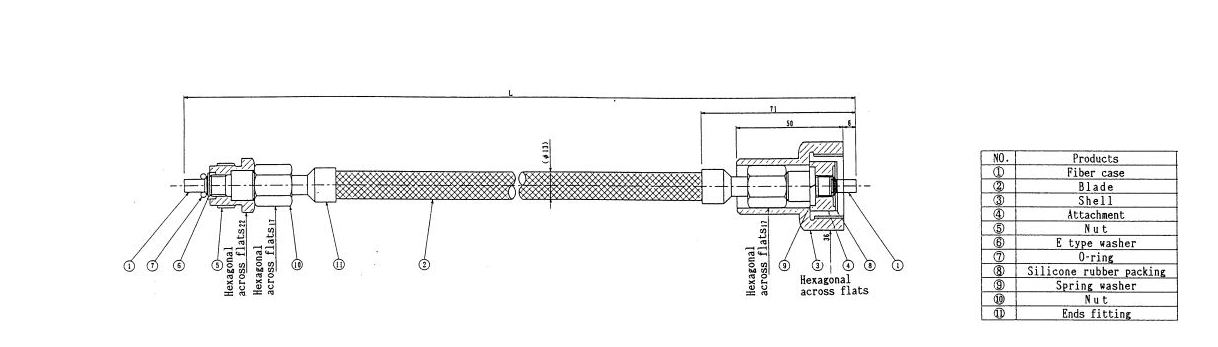

FHV series

Notes

FHL-□□□M type

Model No.	Part No.	Cable length	Compatible Amp.
FHL-321M	PFFL322	2m	PH-FDX series
FHL-351M	PFFL352	5m	PH-FDX series

FH-□□□type

Model No.	Part No.	Cable length	Compatible Amp.
FH-321	PFFG321	2m	LA-FDS series
FH-331	PFFG331	3m
FH-351	PFFG351	5m
FH-411	PFFG411	10m
FH-415	PFFG415	15m
FH-420	PFFG420	20m

FHV-□□□type

Model No.	Part No.	Cable length	Compatible Amp.
FHV-321	PFFV321	2m	PHV series LAV series PRV series
FHV-331	PFFV331	3m
FHV-351	PFFV351	5m
FHV-411	PFFV411	10m
FHV-420	PFFV420	20m

Characteristics Data

FHM-201 Spread : φ40mm×distance

FHM-111-4 Spread : φ20mm×distance

FHM-211-1 Spread : φ20mm×distance(Butφ40mm up to 2m)

FHM-201-8WA Spread : 40mm×500mm×distance

FHM-311 Spread : φ13.3mm×distance(Butφ56mm up to 4.2m)

FHM-203Spread : 10mm×60mm×distance

fhm 203 hirogari
